Description

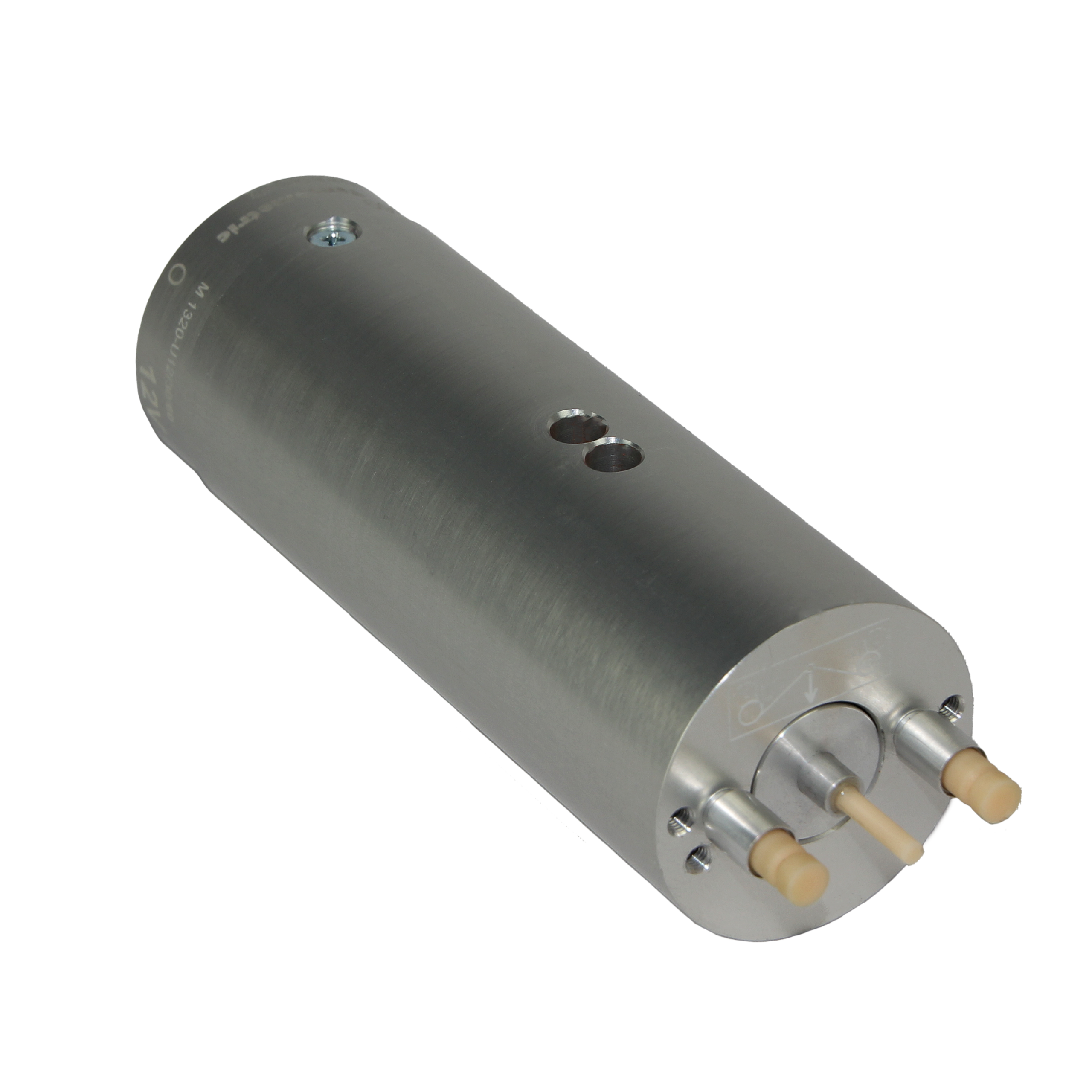

For measuring small forces.
The device is often used to measure weft yarns on weaving machines.
For material speeds up to 6000 m/min
Special features: 3 measuring ranges possible in one sensor by moving the guide pins
With a nominal load of 1N, the following measuring range is possible: 0-1N, 0-2N and 0-5N
Nominal loads: 1N to 5N or on request
Analog output signal 0-10V
Option: 4-20mA
